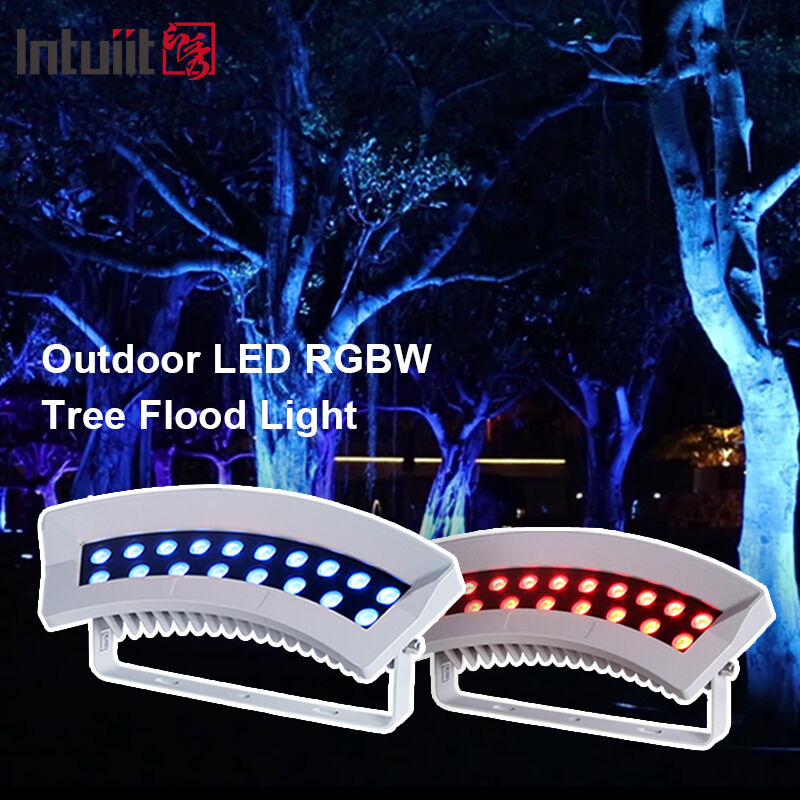

IBS18A: Precision Tree Illumination System

36W RGBW LED Fixture with DMX512/RDM — Engineered for Iconic Landscapes

Designed for lighting designers and landscape architects who demand both aesthetic control and environmental integrity, the IBS18A delivers 36W of high-intensity RGBW output through precision optics — transforming trees into architectural focal points without compromising their health.

Core Advantage: Non-Invasive Power, Total Control
The IBS18A employs a modular tree-hugging form factor that provides 360-degree illumination while preserving bark integrity and allowing unrestricted growth. Integrated DMX512/RDM protocols and IP65-rated construction make it the definitive choice for permanent, large-scale outdoor installations where reliability is non-negotiable.

Technical Specifications

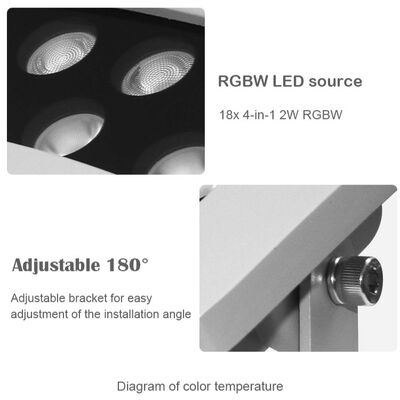

1. Chromatic Engine: RGBW 4-in-1 LED Array
Full-Spectrum Output: Millions of high-saturation colors plus pure whites from a single source — zero "rainbow" artifact in mixed colors.

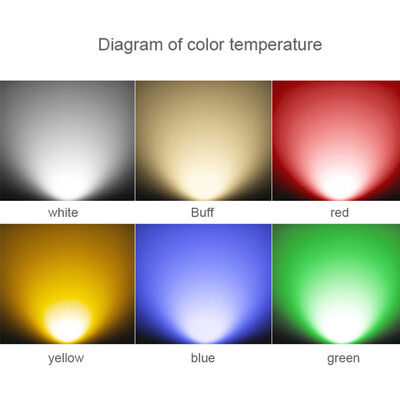

CCT Tunable 2700K–8000K: Shift seamlessly from intimate amber warmth to crisp daylight clarity, adapting to seasonal themes or event programming.

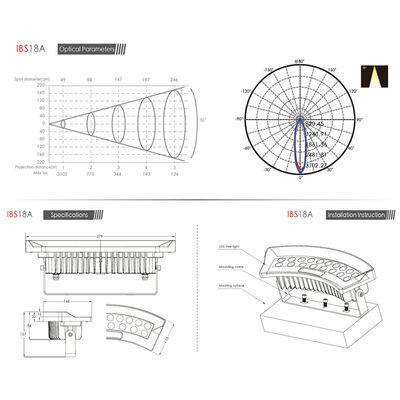

2. Precision Optics
Dual Beam Options:
10° Narrow Beam — Long-throw vertical accenting for tall trunks and architectural columns.
30° Wide Beam — Broad canopy saturation and uniform foliage wash.
0–100% Linear Dimming: Flicker-free transitions with 16-bit precision for cinematic lighting sequences.

3. Touring-Grade Build & Intelligence
IP65 Sealed Housing: Die-cast aluminum, hermetically sealed against heavy rain, dust, and extreme temperature swings.
RDM Bidirectional Communication: Remote addressing, status monitoring, and diagnostics — cutting maintenance overhead across multi-fixture networks.
DMX512 Compliance: Native integration with all major lighting consoles and control architectures.

4. Low-Impact Mechanical Design
Adjustable Secure-Lock Straps: Stable mounting across variable trunk diameters; zero penetration, zero bark damage.
Stealth Profile: Textured, low-reflectance finish remains visually unobtrusive in daylight — the site stays natural, the fixture stays invisible.

1. Product Description



Brand:Guangzhou Dasen Lighting Corporation	Type :IBS18A01
Light source: LED	Wire:rubber cable

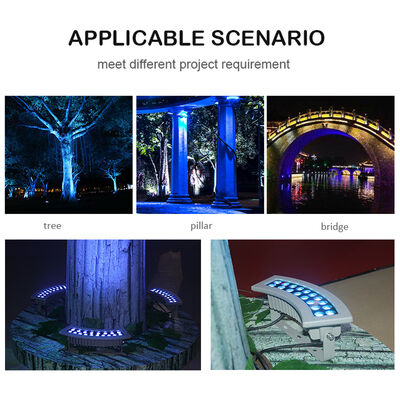

Application :LANDSCAPE,GARDEN, ROAD,HOTEL	Housing Material: Die cast aluminium







Type:		IBS18A01
Rated power:	36W	Rated Voltage:	AC100-240V 50/60Hz
Control Mode:	DMX512	Color:	RGBW
Beam Angle :	20° 30° 40°	Housing Color:	Matt black / Grey
Product Size :	380x138x148mm	IP Rate:	IP65
Lumen:	1100lm	N.W.:	1.8KG
LED :	18*2W	Cooling:	Natural convection cooling







                                                          Please click here to know more





Related Products



About us

Project

Clients feedback&FAQ

3. FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a nationak high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
